SPECIAL PURPOSE VEHICLES ／ Construction Sector

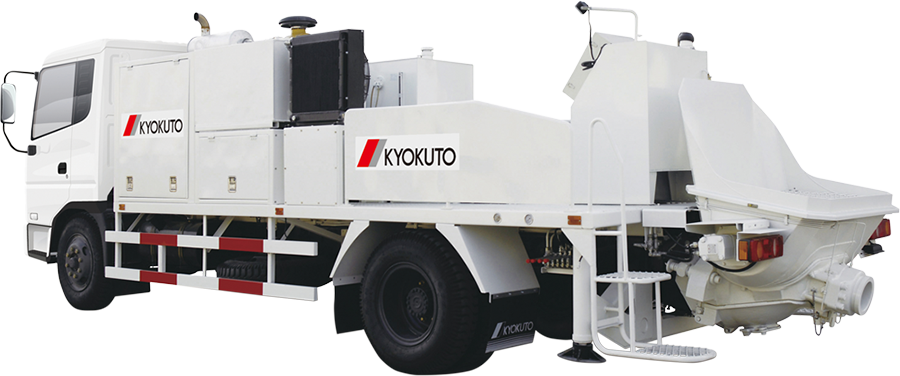

Line concrete pump (Concrete pump)

A concrete pump is a vehicle equipped with a device for transferring ready mixed concrete, conveyed by a concrete mixer truck, at the cast in place through a pipe or hose at a construction site. Various types of concrete pumps are provided according to the working site and the scale of work.

The ultra-highpressure piston pump is mounted.Highly maneuverable, work well even if a narrow construction site.

FEATURES

Newly-designed hydraulic circuit with outstanding reliability and durability many Japanese parts for the main pumps and the valves are adopted.
Wear-plate and wear-ring are made of super-hard alloys that give longer operating time.
The auto lube system lubricates the actuating parts of S-valve, valve cylinder and hopper efficiently.
A high-horsepower engine(250Ps) is adopted . Max output pressure of 14.6MPa (8B) is achieved.
The concrete cylinders can be replaced with new one easily often opening the Bottom flap.
The switch is located at the control panel that is switchable between high pressure pumping and standard pressure pumping quickly including pumping to high places and to a distance.

SPECIFICATIONS

Model			PT100-10E
Bore of concrete cylinder			8B	9B
Overall Length			8,890mm
Overall Width			2,450mm
Overall Height			2,980mm
Performance	Max. Output (Output×Pressure)	Standard Pressure & High Speed	82m³/h×8.6MPa	98m³/h×7.3MPa
	Max. Output (Output×Pressure)	High Pressure & Low Speed	50m³/h×14.6MPa	62m³/h×12.3MPa
	Allowable Slump Value		8 - 23 cm
	Diameter of Delivery Line		180mm
	Maximum Aggregate Size		40mm or under

The above mentioned figures are approximate.
