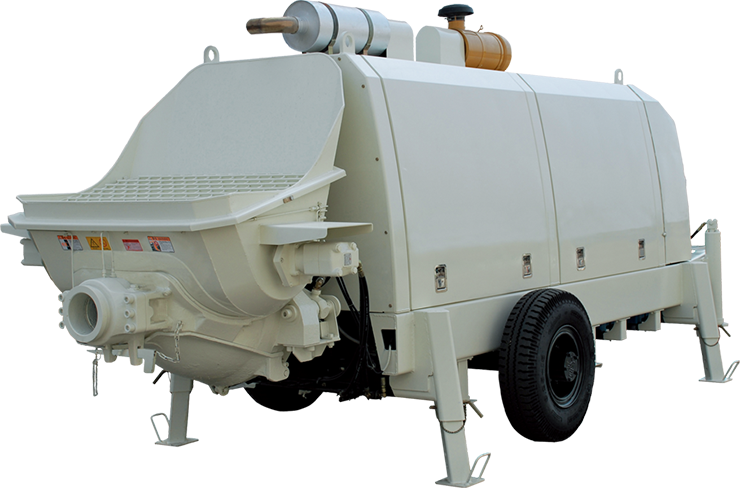

Stationary concrete pump (Concrete pump)

SPECIAL PURPOSE VEHICLES ／ Construction Sector

Stationary concrete pump (Concrete pump)

A concrete pump is a vehicle equipped with a device for transferring ready mixed concrete, conveyed by a concrete mixer truck, at the cast in place through a pipe or hose at a construction site. Various types of concrete pumps are provided according to the working site and the scale of work.

FEATURES

The high performance model that has outstanding pumping capability.
Less remainder of concrete and easy-to-wash simple valve structures. (Swing Valve)
Wear-pate and wear-ring are made of super-hard alloys that give longer operating time.
The pressure setting can be easily changed from high pressure mode to standard pressure mode and vice versa.
The Integrated Control Panel secures positive pumping work.

SPECIFICATIONS

Model			PT90-31E
Overall Length			7,140mm
Overall Width			2,095mm
Overall Height			2,490mm
Performance	Max. Output (Output×Pressure)	Standard Pressure & High Speed	88m³/h×7.8MPa
	Max. Output (Output×Pressure)	High Pressure & Low Speed	57m³/h×12.6MPa
	Allowable Slump Value		8 - 23 cm
	Diameter of Delivery Line		180mm
	Maximum Aggregate Size		40mm or under
Gross Weight			5,700kg

The above mentioned figures are approximate.
